1. Performance

• Energy Efficiency: C [EU]
• Airflow: 141–355 CFM (240–603 m³/h)
• Noise Level: 1.3–2.0 sone (41–57 dB)
• Lighting: LED/2 × 3W
• Color Temperature: 2700K
• Illuminance: 457 LUX
• Control Type: Button
• Timer: No
• Fan Speeds: 3S
• Power Consumption: 256W

2. Installation

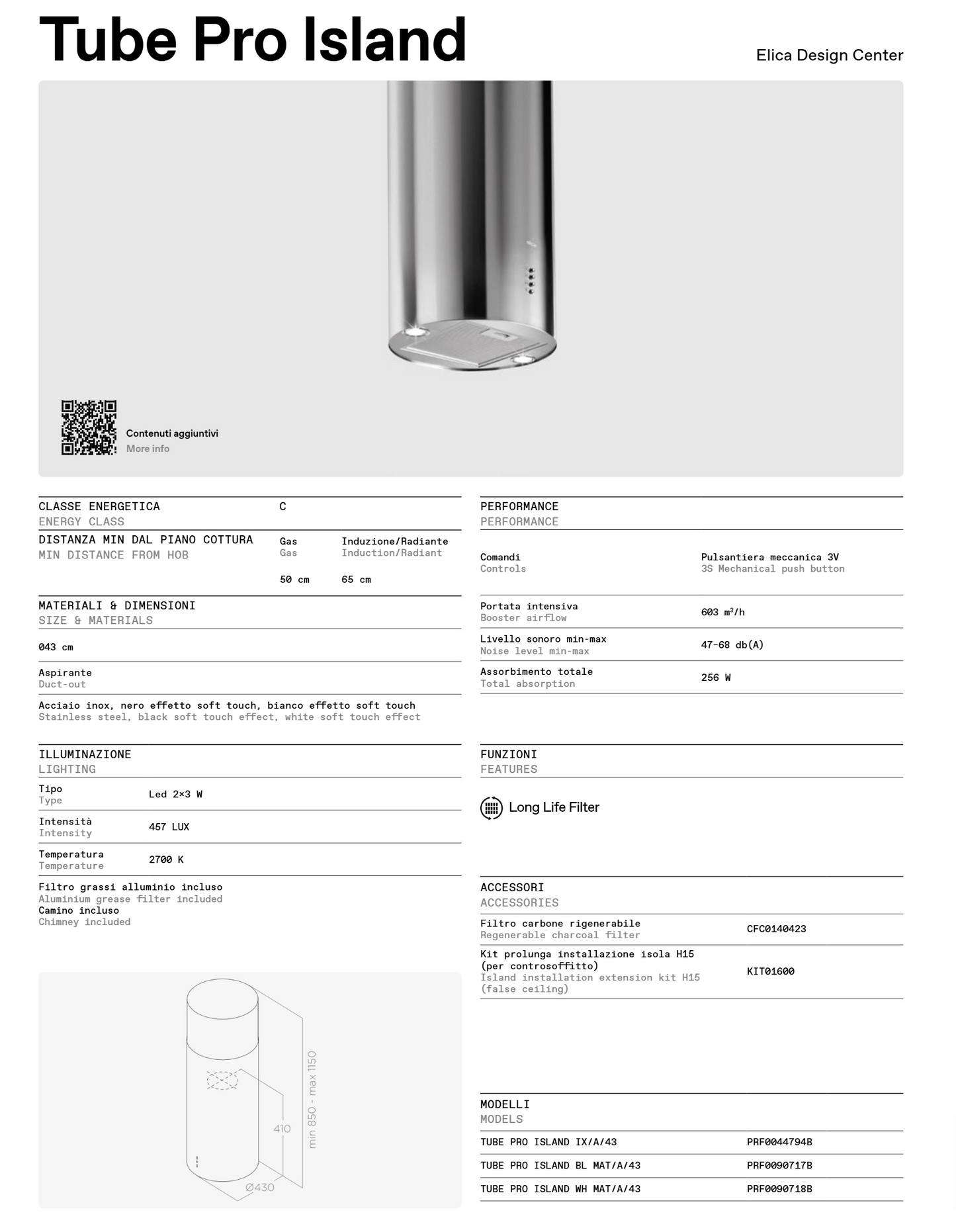

• Dimensions: Refer to technical drawings
• Vent Diameter: Φ6 in (Φ15 cm)
• Wall Hole Diameter: ≥Φ7 in (≥Φ18 cm)
• Minimum Clearance Above Induction Cooktop: ≥19.7 in (50 cm)
• Minimum Clearance Above Gas Cooktop: ≥25.6 in (65 cm)

Product Information

• Brand: Elica
• Name: Tube Pro
• Model: PRF0090717B (Black)
• Model: PRF0090718B (White)
• Model: PRF0044794B (Silver)
• Current: 10A
• Voltage: 220–240V
• Frequency: 50/60Hz
• Connection: Pre-installed socket
• Net Weight: 57.3 lbs (26 kg)
• Country of Origin: Italy

------------------------------------
